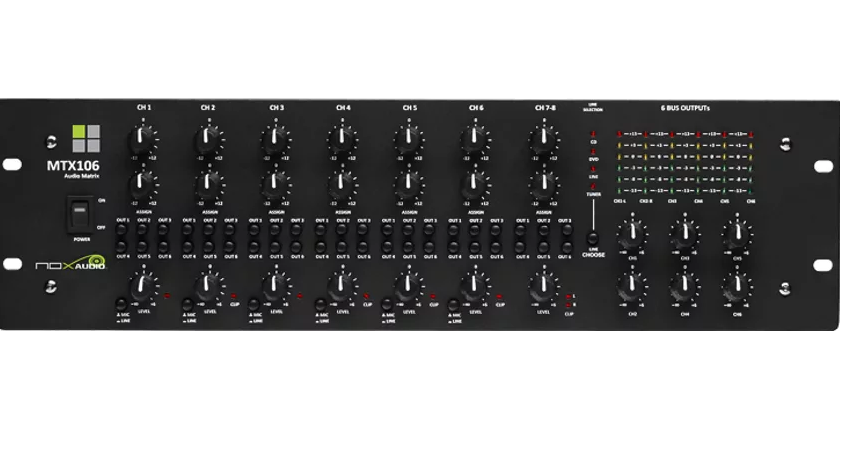

Multi-zone Audio Matrix System Overview:

NOX AUDIO MTX106 is an analogue audio matrix system that consists of 6 mic / line inputs & one stereo which can be selected via the source selector from the 4 stereo RCA inputs connected all the inputs can be freely assigned to each of 6 outputs. possible supply of up to 6 different PA zones with a mono output by simply routing different input signals to these zones without changing the cabling. it is also possible to obtain 6 outputs with different mixing as every input has its own level control.

Features:

• 6 mic / line inputs, switchable at the front, with independent gain controls, 2 band equalizer, level control & Clip LED Indicator.
• 1 stereo line channel with 4 way input selector, gain control, 2 band equalizer, level control & clip LED.
• Matrix inputs assignment each input channel can Be freely assigned to each of the 6 outputs.
• Each microphone input with low noise preamplifier & optional + 48V phantom power.
• 6 mono outputs with level control & 6 digit LED level meter.
• Input Connectors : 6 x line (Stereo RCA), 6 X microphone (XLR), 4X Aux stereo ( RCA )
• Output Connectors : 6 X master ( XLR balanced or RCA unbalanced )
• Rack mountable ( 19 ’’ / 3 U )
